colour_visuals.VisualGrid#

class colour_visuals.VisualGrid(size: float = 20, centred: bool = True, major_grid_colours: ArrayLike = (0.5, 0.5, 0.5), minor_grid_colours: ArrayLike = (0.25, 0.25, 0.25), major_tick_labels: bool = True, major_tick_label_colours: ArrayLike = (0.75, 0.75, 0.75), minor_tick_labels: bool = True, minor_tick_label_colours: ArrayLike = (0.5, 0.5, 0.5))[source]#

Bases: MixinPropertySize, Visual

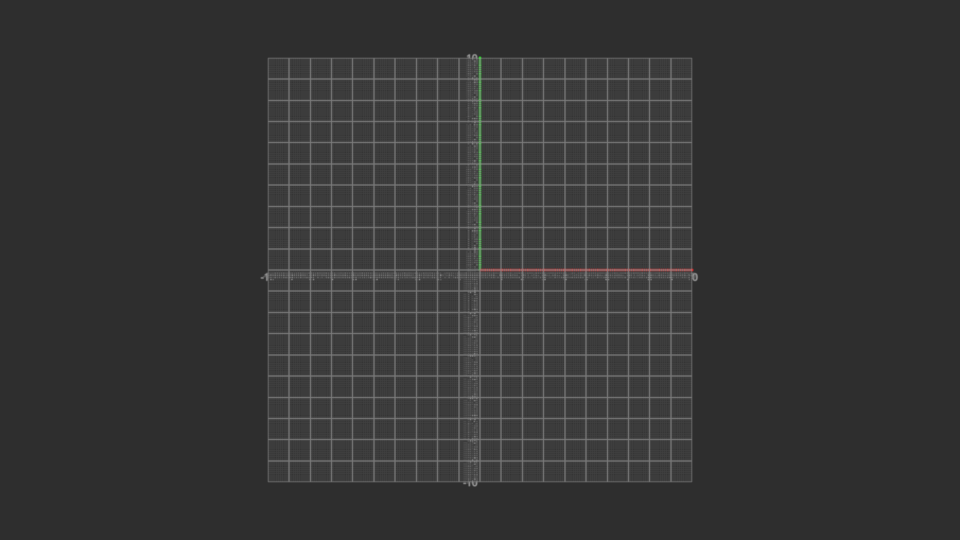

Create a 3D grid.

Parameters:

size (float) – Size of the grid.
centred (bool) – Whether to create the grid centred at the origin.
major_grid_colours (ArrayLike) – Colour of the major grid lines.
minor_grid_colours (ArrayLike) – Colour of the minor grid lines.
major_tick_labels (bool) – Whether to draw the major tick labels.
major_tick_label_colours (ArrayLike) – Colour of the major tick labels.
minor_tick_labels (bool) – Whether to draw the minor tick labels.
minor_tick_label_colours (ArrayLike) – Colour of the minor tick labels.

Attributes

size
centred
major_grid_colours
minor_grid_colours
major_tick_labels
major_tick_label_colours
minor_tick_labels
minor_tick_label_colours

Methods

__init__()
update()

Examples

>>> import os
>>> from colour.utilities import suppress_stdout
>>> from wgpu.gui.auto import WgpuCanvas
>>> with suppress_stdout():
...     canvas = WgpuCanvas(size=(960, 540))
...     scene = gfx.Scene()
...     scene.add(
...         gfx.Background(
...             None, gfx.BackgroundMaterial(np.array([0.18, 0.18, 0.18]))
...         )
...     )
...     visual = VisualGrid()
...     camera = gfx.PerspectiveCamera(50, 16 / 9)
...     camera.show_object(visual, up=np.array([0, 0, 1]), scale=1.25)
...     scene.add(visual)
...     if os.environ.get("CI") is None:
...         gfx.show(scene, camera=camera, canvas=canvas)

__init__(size: float = 20, centred: bool = True, major_grid_colours: ArrayLike = (0.5, 0.5, 0.5), minor_grid_colours: ArrayLike = (0.25, 0.25, 0.25), major_tick_labels: bool = True, major_tick_label_colours: ArrayLike = (0.75, 0.75, 0.75), minor_tick_labels: bool = True, minor_tick_label_colours: ArrayLike = (0.5, 0.5, 0.5)) → None[source]#

Parameters:

size (float)
centred (bool)
major_grid_colours (ArrayLike)
minor_grid_colours (ArrayLike)
major_tick_labels (bool)
major_tick_label_colours (ArrayLike)
minor_tick_labels (bool)
minor_tick_label_colours (ArrayLike)

Return type:

None

property centred: bool#

Getter and setter property to create the grid centred at the origin.

Parameters:: value – Value to create the grid centred at the origin.
Returns:: Create the grid centred at the origin.
Return type:: bool

property major_grid_colours: ArrayLike#

Getter and setter property for the major grid colour.

Parameters:: value – Value to set the major grid colour with.
Returns:: Major grid colour.
Return type:: ArrayLike

property minor_grid_colours: ArrayLike#

Getter and setter property for the minor grid colour.

Parameters:: value – Value to set the minor grid colour with.
Returns:: Major grid colour.
Return type:: ArrayLike

property major_tick_labels: bool#

Getter and setter property for the major tick labels state.

Parameters:: value – Value to set major tick labels state with.
Returns:: Major tick labels state.
Return type:: bool

property major_tick_label_colours: ArrayLike#

Getter and setter property for the major tick label colour.

Parameters:: value – Value to set the major tick label colour with.
Returns:: Major tick label colour.
Return type:: ArrayLike

property minor_tick_labels: bool#

Getter and setter property for the minor tick labels state.

Parameters:: value – Value to set minor tick labels state with.
Returns:: Minor tick labels state.
Return type:: bool

property minor_tick_label_colours: ArrayLike#

Getter and setter property for the minor tick label colour.

Parameters:: value – Value to set the minor tick label colour with.
Returns:: Minor tick label colour.
Return type:: ArrayLike

update() → None[source]#

Update the visual.

Return type:: None
